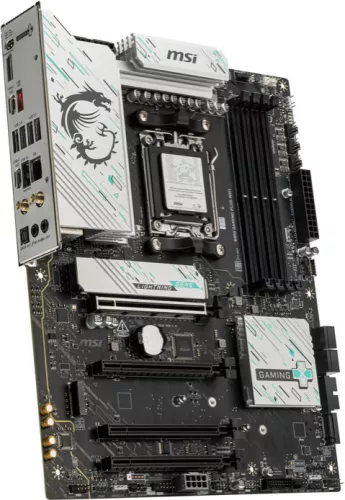

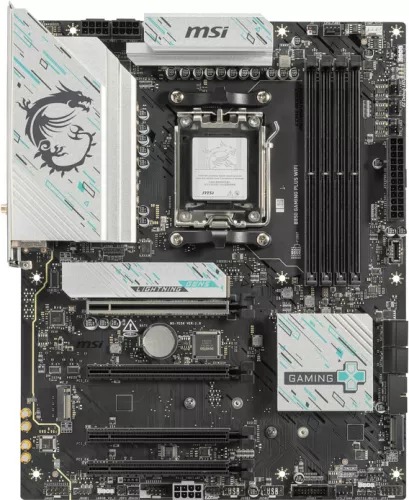

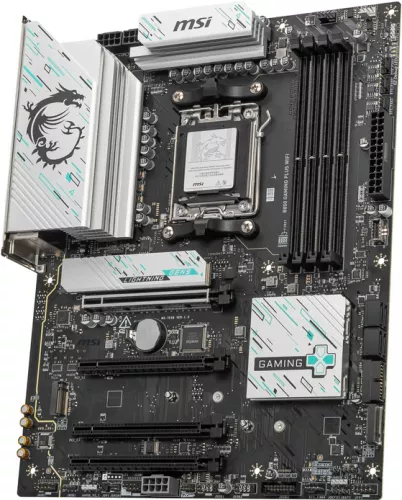

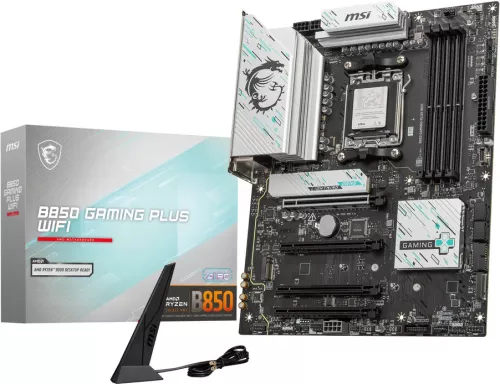

Placa de baza MSI B850 GAMING PLUS WIFI, AMD B850, Socket AM5, ATX
Specificatii
| Tip memorie RAM: | DDR5 |
| Wi-Fi Ready | Da |
| BIOS Flashback | Da |
| Bluetooth | Bluetooth 5.4 |
| Clear CMOS | 1 |
| Conectori speciali | 1x Q-Flash Plus button |
| HDMI: | 1 |
| Optical S/PDIF out | 1 |
| Porturi USB 3.0 Spate: | 1 |
| Porturi USB 3.1: | 1 |
| RJ-45 LAN | 1 |
| Suport audio | 7.1 |
| USB 2.0: | 4 |
| USB 3.2 Gen1 tip C | 2 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz |
| Memorii Suportate | |
| Memorie maxima | 256 GB |
| Numar sloturi | 4 |
| Tehnologie: | Dual channel |
| Tip memorie | DDR5 |
| Slot PCI-Express x16: |
1
1 (x4) 2 (x1) |
| General | |
| Chipset audio | Realtek |
| Chipset retea | Realtek 8126VB 5G |
| Format | ATX |
| Interfata grafica: | PCI Express x16 5.0 |
| M.2 | 3 |
| Model chipset | B850 |
| Numar SATA-III | 4 |
| Placa audio integrata | 7.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000/2500/5000 Mbps |
| Placa video integrata: | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| Procesoare suportate: | AMD AM5 Socket Ryzen™ 7000/8000/9000 Series |
| Producator chipset | AMD |
| RAID: | 0, 1 |
| Recomandat pentru Gaming | Da |
| Soclu procesor | AM5 |
