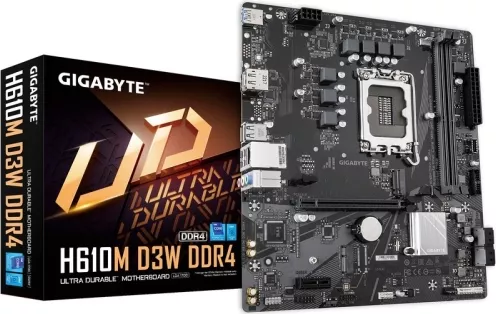

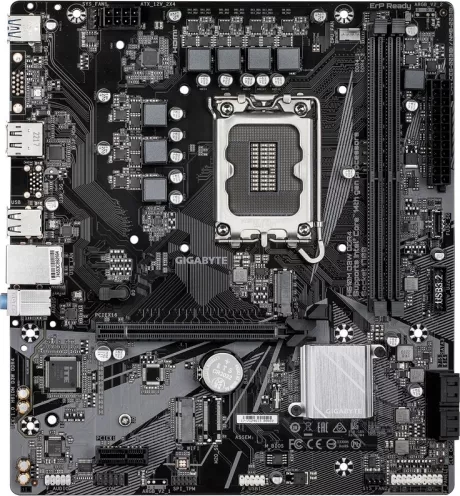

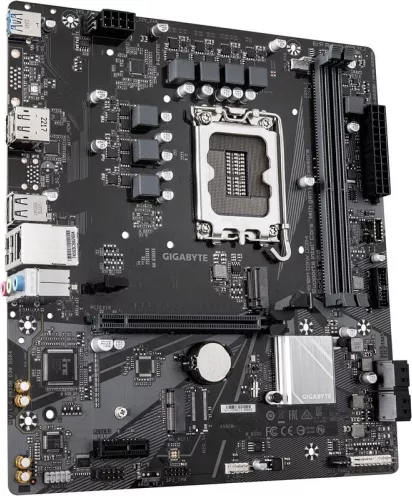

Placa de baza GIGABYTE H610M D3W DDR4, Intel H610, LGA 1700, mATX
Specificatii
| Bluetooth | Nu |
| Tip memorie RAM: | DDR4 |
| Wi-Fi Ready | Nu |
| Wireless | Nu |
| Altele: | Suporta Extreme Memory Profile (XMP) |
| Frecvente suportate | 3200/3000/2933/2666/2400/2133 MHz |
| Memorie maxima | 64 GB |
| Numar sloturi | 2 |
| Tehnologie: | Dual channel |
| Tip memorie | DDR4 |

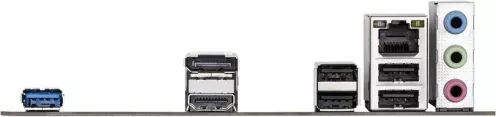

| Conectori Back Panel | |
| Display Port: | 1 |
| HDMI: | 1 |
| Porturi USB 3.0 Spate: | 1 |
| RJ-45 LAN | 1 |
| Suport audio | 7.1 |
| USB 2.0: | 4 |
| Sloturi | |
| Slot PCI-Express x16: | 1 (x16) |
| Altele: | 1x M.2 Wi-Fi module slot Support for Q-Flash |
| BIOS: | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset audio | Realtek |
| Chipset retea | Realtek GbE |
| Format | Micro ATX |
| Interfata grafica: | PCI Express x16 4.0 |
| M.2 | 1 |
| Model chipset | H610 |
| Numar SATA-III | 4 |
| Placa audio integrata | 7.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata: | Necesita procesor cu tehnologia Intel HD Graphics |
| Procesoare suportate: | Intel 12th/13th/14th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
| RAID: | Nu |
| Recomandat pentru Gaming | Da |
| Soclu procesor | 1700 |
